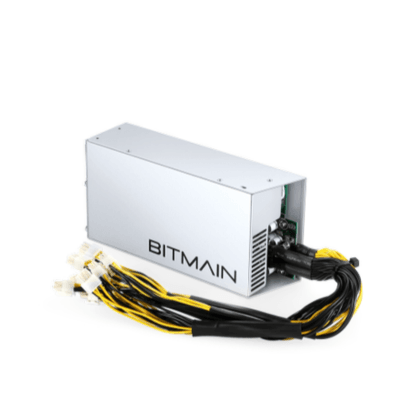

Antminer APW7 Replacement Power Supply for (Z15,Z15e,Z15j)

The Antminer APW7 1800W PSU is built for the (Z15, Z15e, Z15j), providing a stable 12-16v output with a 220v input. It’s designed for efficiency, improving performance and ensuring reliable power for demanding mining operations.
Specifications
Out 1:

Dc Voltage: 12.0V
Rated Current(220 V input): 150A
Rated Power(220 V input): 1800W
Rated Current(110 V input): 83.3A
Rated Power(110 V input): 1000W
Ripple & Noise: <1%
Voltage Accuracy : 12.0v—12.5v
Line Regulation: <1%
Load Regulation : <1%
Setup Time : <2S
Short Circuit Protection:  >10mS

Input:

Voltage Range: 100–264V AC
Frequency Range: 47-63Hz
Power Factor:  >0.99(full load)
Leakage Current : <1.5mA（220V 50Hz）

Protection:

Input Undervoltage protection value: 80-89v AC
Output Short Circuit: Yes
Overheat Protection:  Yes
Over-current Output:  150-200A

Environment:

Operating Temperature: -20-60℃
Operating Humidity: 0-40%
Altitude:  < 2000m

Structure:

Size: 206 x 110 x 62mm
Weight Net: 2.0Kg
Cooling method: Forced air cooling
Noise : 43db
