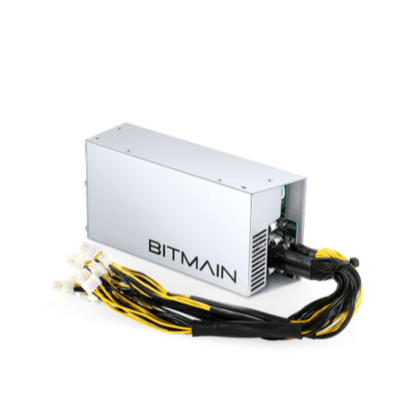

Bitmain PSU Apw3 1600w

The APW3 1600w series AC-DC Power supply is specifically designed with mining operations in mind, and combines high conversion efficiency and a strong dynamic performance into a power dense package. It also features short circuit, overload, overheats, low voltage and overload protection. 1600w with the TEN 6PIN connectors, the Antminer APW3 is absolutely the best power supply for cryptocurrency mining!

Product Specification

 Brand : Antminer APW3 -12-1600
Rated Power 1600w(200V – 240V); 1200w(100V – 140V);
Interface Type 6PIN x 10
Package Size 332mm x 170mm x 125mm
Working Voltage 110V – 220V.
Accessory Needed NO power cable (The power cable should be easily attainable locally.)

Specifications

DC Voltage

12.15V

Rated Current
(220V input)

133A

Rated Current
(110V input)

100A

Rated Power
(220V input)

1600W

Rated Power
(110V input)

1200W

Ripple & Noise

<1%

Voltage Regulation

<2%

Source Regulation

<1%

Load Regulation

<1%

Setup, Rise Time

<2S

Power off Protection Trip Time

>9mS

Interface Type
 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)

Noise Level

 <43DB

Voltage Range

100-240V AC

Starting Voltage

95-105V AC

Frequency Range

47-63Hz

Power Factor

>0.95 (full load)

Leakage Current

<1.5mA (220V 50Hz)

Low-voltage Input

80-89V AC

Output Short Circuit

Yes

Output Overcurrent

134-185A max.

Overheat Protection

Yes

Operating Temperature

-20°C – 50°C

Operating Humidity

20% – 90% relative humidity (non-condensing)

Dimensions

220mm*108mm*62mm

Fan

Forced-air cooling
